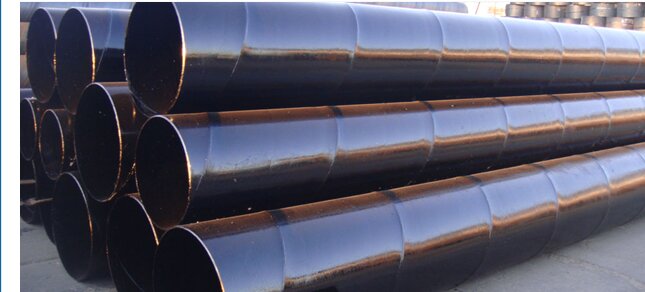

API 5L X 46 PSL 1 / 2 Pipes


We are manufacturer, exporter & suppliers of API 5L X46 PSL 1 / 2 and supply high quality API 5L X46 PSL 1 / 2 in both large and small quantities worldwide & offer you the best prices in the market. We have a team of experienced professionals with years of experience in manufacturing.








API 5L X 46 PSL 1 Pipes




Chemical Composition of API 5L X46 PSL 1 / 2
Mass fraction, based upon heat and product analysis a
Seamless Pipe
C Mn  P S V Nb Ti
maxb max.b max. max. max. max. max.
0.28 1.40 0.030 0.030 d d d
Welded Pipe
0.26 1.40 0.030 0.030 d d d









0.50% maximum for copper, 0.50% maximum for nickel, 0.50% maximum for chromium, and 0.15% maximum for molybdenum.
For each reduction of 0.01% below the specified maximum concetration for carbon, an increase of 0.05% above the specified maximum concentration for manganese is permissible, up to a maximum of 1.65%
unless otherwise agreed, the sum of the niobium and vanadium contents shall be ≤0.06%.
The sum of the niobium ,vanadium and titanium concentratons shall be ≤0.06%.
Unless otheriwse agreed.
unless otherwise agreed, the sum of niobium, vanadium and titanium concentrations shall be ≤ 0.15%



Mechanical Requirements

Y.S T.S Elongation
Mpa(psi) Mpa(psi)
min min min
320 (46 400) 435 (63 100) 28%





API 5L X46 PSL 2 Pipes




Chemical Composition of API 5L X46 PSL 1 / 2

Mass fraction, based upon heat and product analysis % maximum Carbon Equivalent A
% Maximum
Cb Si Mnb P S V Nb Ti Other CEIIW CEPcm
 Seamless & Welded Pipes
L320N or X46N 0.24 0.4 1.2 0.025 0.015 0.07 0.05 0.04 e 0.43 0.25
L320Q or X46Q 0.18 0.45 1.4 0.025 0.015 0.05 0.05 0.04 e 0.43 0.25
Welded Pipe
L290M OR X42M 0.22 0.45 1.3 0.025 0.015 0.05 0.05 0.04 e 0.43 0.25



unless otherwise agreed, the sum of th niobium & vanadum concentrations shall be = 0.06%.
Unless otherwise agreed, 0.50% maximum for copper, 0.30% maximum for nickel, 0.30% maximum for chromium, & 0.15% maximum for molybdenum.



Mechanical Requirements

Y.S T.S ELONGATION
Mpa(psi) Mpa(psi)
min min min
320 (46 400) 435 (63 100) f


  The specified minimum elongation, Af,   shall be as determined using the following equation:

  API 5L X46 PSL 1 / 2 Usage
  American Petroleum Institute standard 5L. API pipes & API 5L X46 PSL 1 / 2 are exclusively used for transmission of gas and petroleum products.

  API 5L X46 PSL 1 / 2 Specification

API 5L X46 (PSL1) (PSL2)
Minimum Yield Strength: 46,400 psi 46,400 psi
Maximum Yield Strength: None 76,100 psi
Minimum Tensile Strength: 63,100 psi 63,100 psi
Maximum Tensile Strength: None 110,200 psi
